Sanders Sound Systems - Digital Preamplifier

$4,900

The digital preamplifier fundamentally is our analog preamplifier with the addition of both S/PDIF and USB digital inputs. This results in a full-function preamp that includes all the normal analog inputs and features -- including a phono stage -- combined with the ability to accept all the usual digital music sources.

This means that it is no longer necessary to buy an external DAC with all its additional clutter and awkward operation. By including a DAC in the preamp, the operation of your audio system control center is fully integrated and offers remote control of everything, including your digital sources and their level controls.

Of course, the DAC needs to be a state-of-the-art unit that offers the very finest digital performance. Only the best DAC performance is acceptable.

To achieve this, Sanders has partnered with Light Harmonic to provide the DAC module for our preamp. You can find more details on this superb DAC on the Light Harmonic website -- www.lightharmonic.com/home-audio.

Light Harmonic DACs are extremely expensive, but you can obtain the same performance in our Digital Preamp for a fraction of the cost -- and get a full-featured preamp as well! Sanders believes in giving great value for the money, and this is a perfect example of this philosophy.

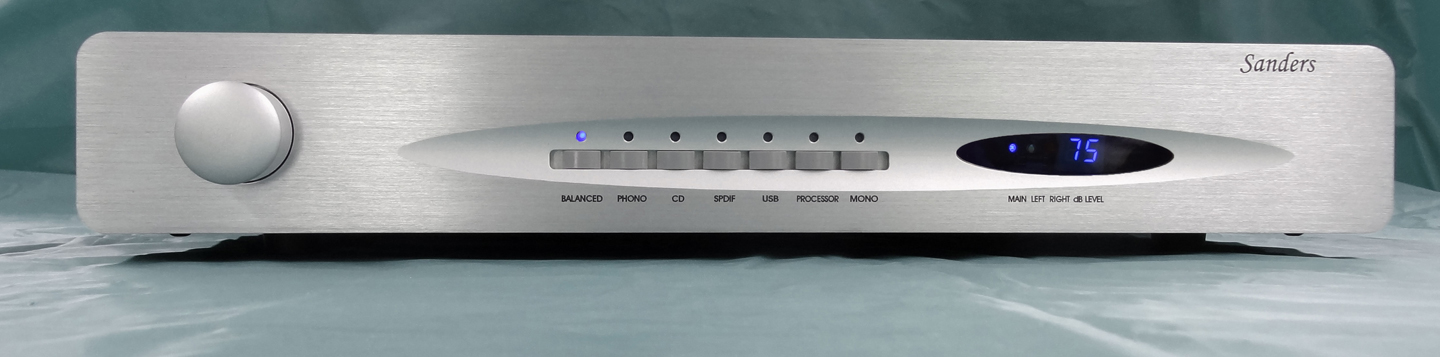

reduced preamp front final lite

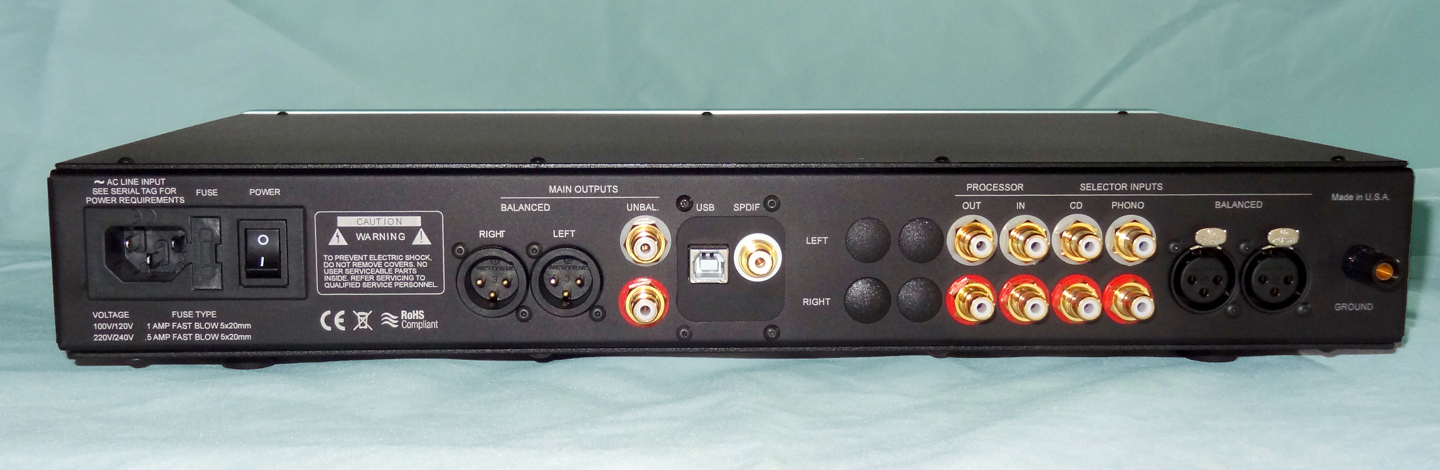

reduced rear full

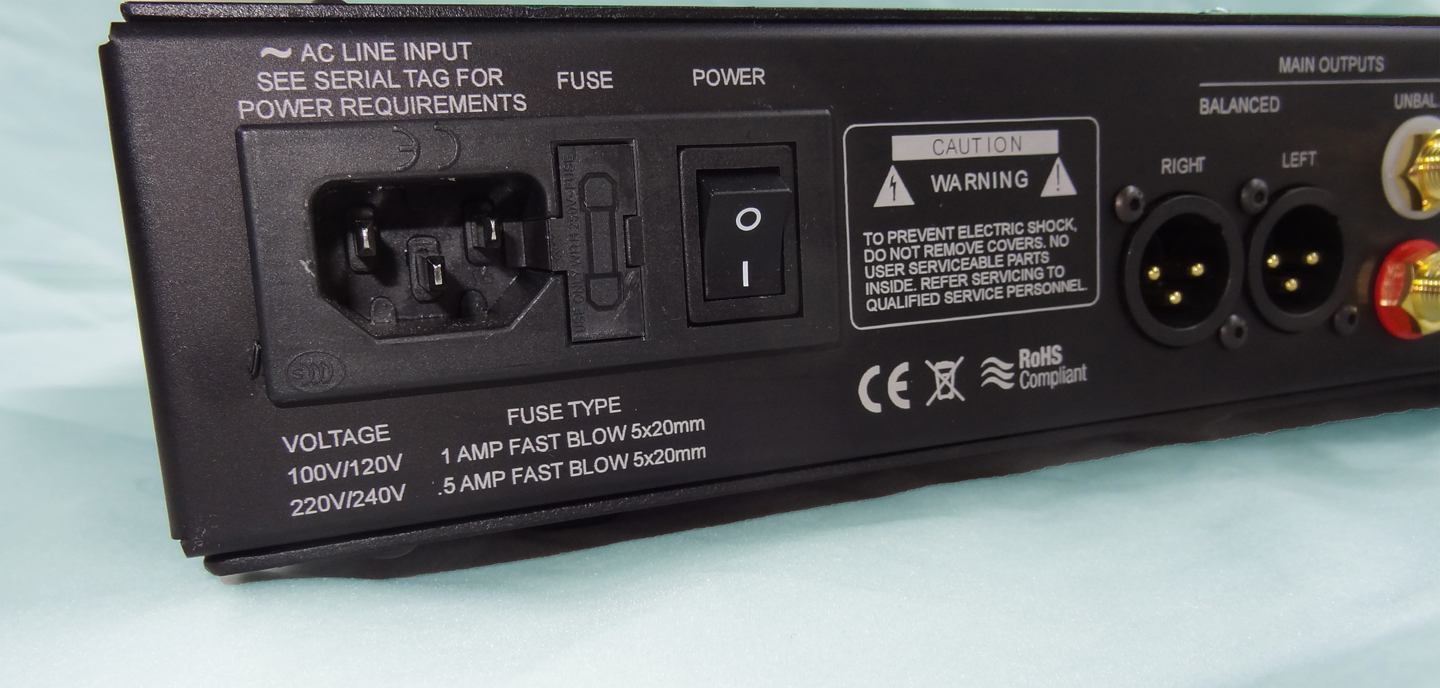

reduced rear left

reduced rear center

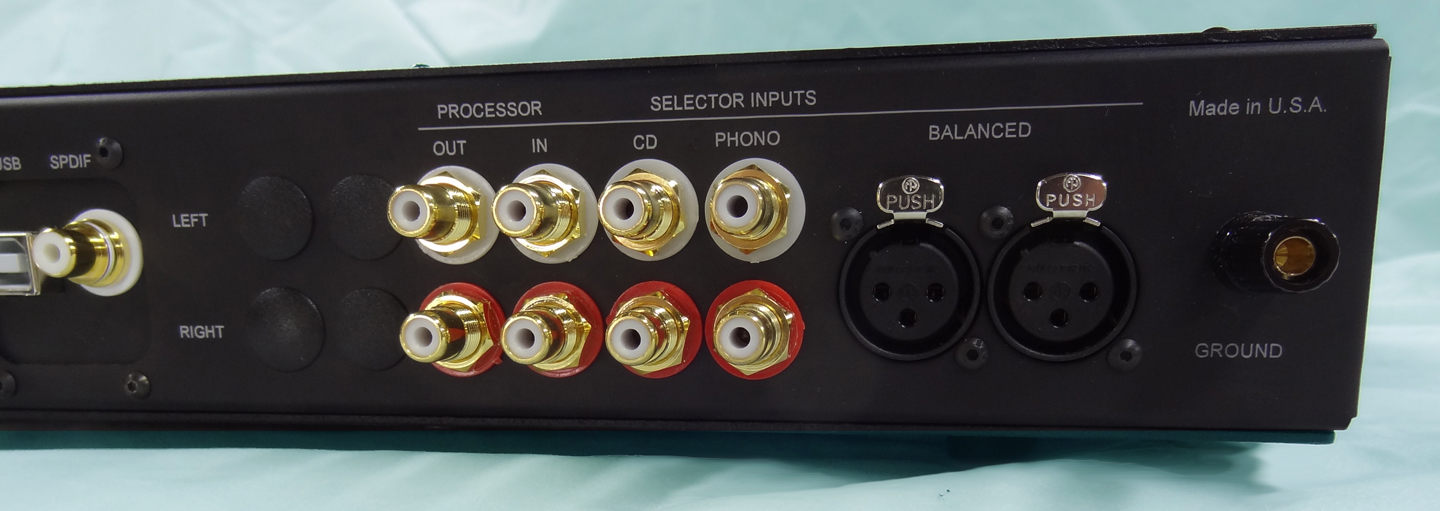

reduced rear right

CIRCUIT SPECIFICATIONS

Electrical Specifications

INPUTS

One balanced input using XLR connectors.
One unbalanced phono input with switchable gain, adjustable input loading,and RIAA equalization.
One unbalanced line level input.
Unbalanced video processor input with fixed level at a unity
gain as a pass-through.
Digital USB and S/PDIF inputs.

OUTPUT

Two unbalanced, adjustable outputs at line level using RCA connectors
One balanced, adjustable output at line level
using XLR connectors (Pin 2 hot).
One balanced, adjustable output at line level
using XLR connectors (Pin 2 hot).

All outputs may be used simultaneously.

FREQUENCY RESPONSE:

-3 dB at 5 Hz and 200 kHz

NOISE:

Greater than 90 dB below 1 volt reference

DISTORTION:

Less than 0.002% from 10 Hz to 40 KHz @ 5 volts peak into
600ê or higher, shunted by 1000 pF or less.

OUTPUT IMPEDANCE:

50ê, non-reactive, balanced or single-ended

INPUT IMPEDANCE:

47kê balanced or single-ended

GAIN:

8 dB (user adjustable)

MAXIMUM OUTPUT:

10 volts peak

CROSSTALK:

Greater than 70 dB from 20 Hz to 20 KHz

POWER SUPPLY

Independently regulated with shielded toroidal transformer and 20,000 þF of capacitance

POWER CONSUMPTION:

10 watts

Digital Specifications

DAC Chip: ES9018	Native PCM Format Decode: 16/44.1KHz to 32bit 384KHz
IOS support: Enabled through CCK	Native DSD Format Decode: DSD64, DSD128, DSD256
Windows OS support: Enabled through LH Windows Driver	MacOS Support: Plug and play
S/PDIF Input: 44.1K to 216K linear PCM	Digital Filter: LIght Harmonic TCM (Time Coherence Mode)
Audio Master Clock: TCXO Customized DUAL	S/N ratio: 102 dB

Weight and Dimensions

WEIGHT: 8 pounds (3.6 KG)

Shipping Weight: 13 pounds (5.9 KG)

DIMENSIONS

HEIGHT: 21/2" (6.35 cm)
WIDTH: 17" (44 cm)
DEPTH: 101/2 (27 cm)
